Economical and versatile, Cor-Pan’s undulating metal wall panel design compliments a variety of architectural styles. Cor-Pan features longitudinal ribs that are spaced 2.67 inches on center and is available in two depths: Cor-Pan 1.0 ribs are ⅞-inch deep; Cor-Pan 0.5 ribs are ½-inch deep.

Product Documents

Design Characteristics

  • Suitable for interior or exterior applications

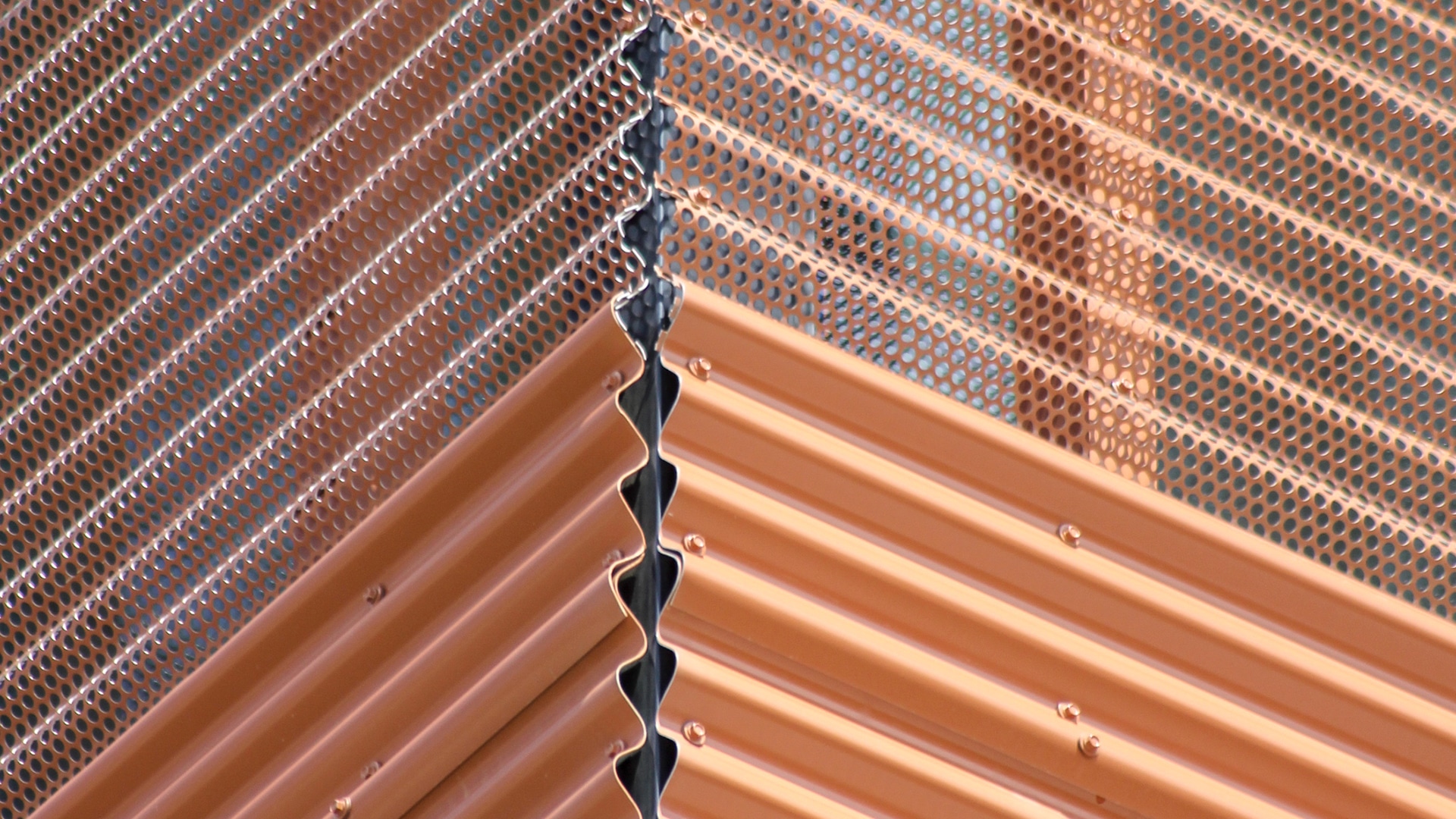

  • Optional perforation available
  • Can be installed horizontally or vertically
  • Longitudinal ribs are spaced 2.67 inches on center
  • Cor-Pan 1.0: Ribs are ⅞-inch deep; 35.5-inch coverage width
  • Cor-Pan 0.5: Ribs are ½-inch deep; 40-inch coverage width
  • Standard lengths: 6′ to 45′

Available Materials

  • Steel: 20, 22 and 24-gauge*
  • Aluminum: .032″, .040″ and .050″
  • *24 gauge only available with Cor-Pan 0.5


  • 20-year finish warranty
