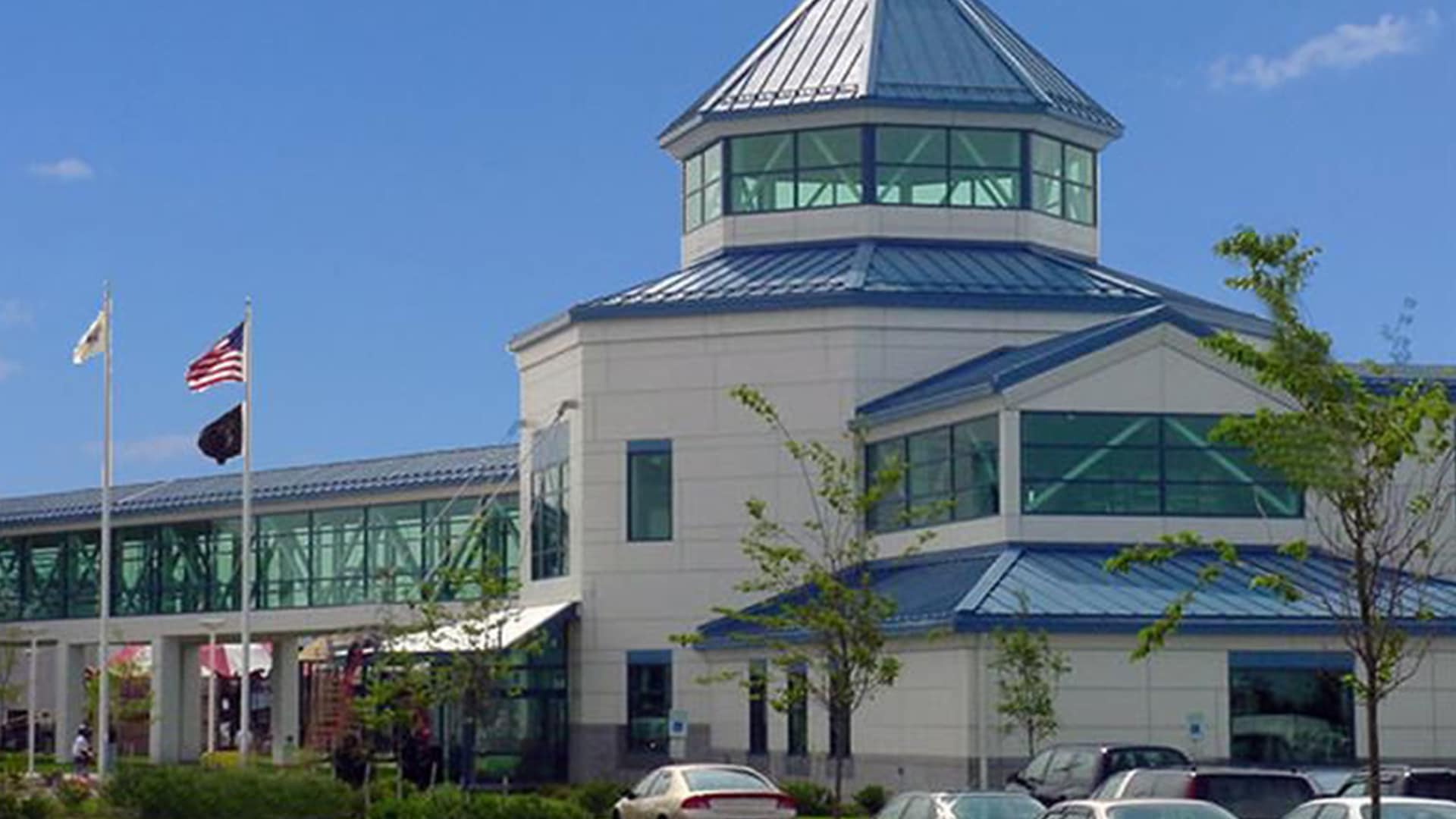

CAPE MAY FERRY TERMINAL Cape May, NJ (2000)
54,000 sq.ft. Batten-Tite .040" Aluminum
hillview reservoir Yonkers, NY (2002)
45,000 sq.ft. Batten-Tite 24GA Stainless

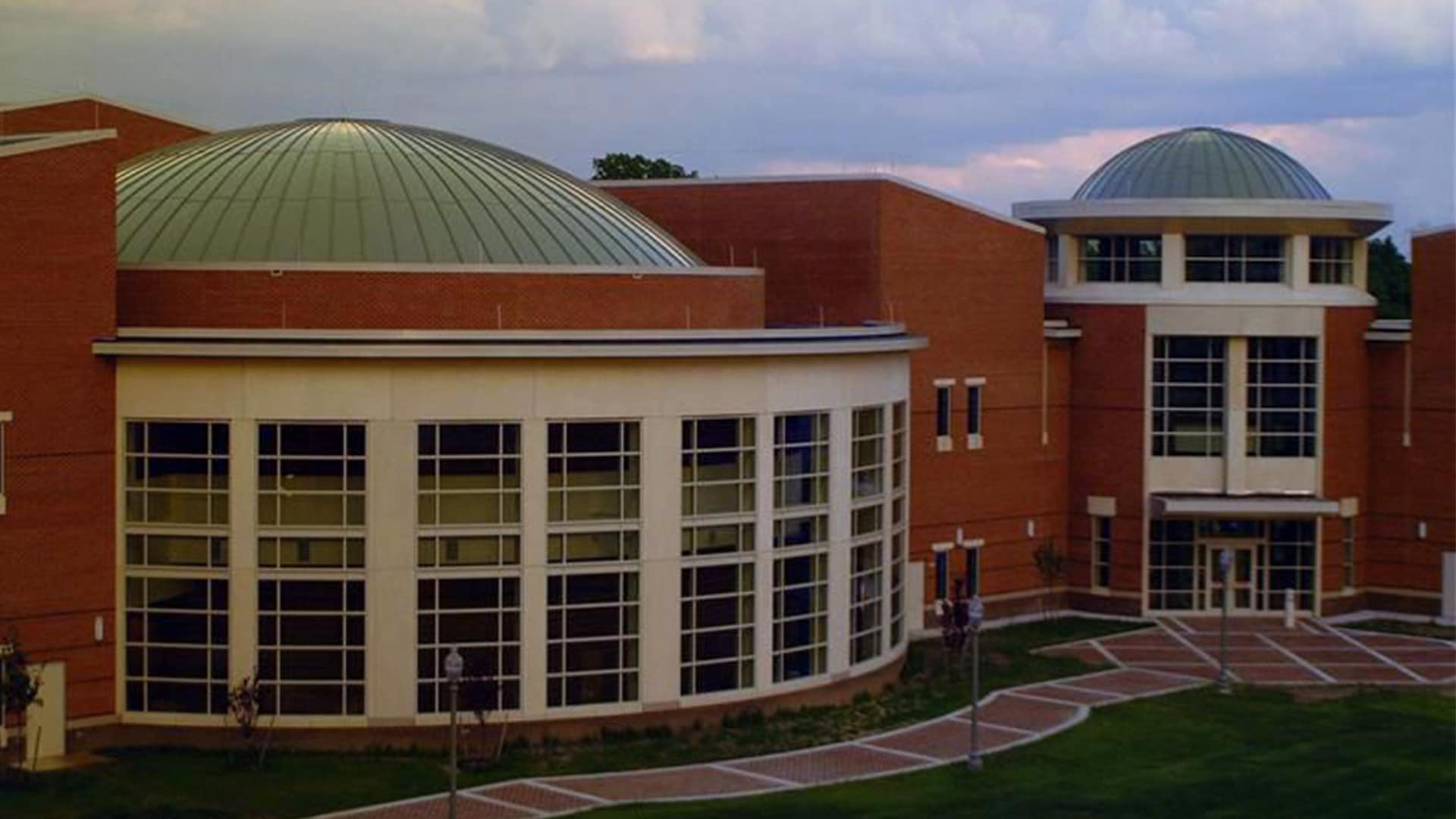

BURLINGTON COUNTY COMMUNITY COLLEGE Mt. Laurel, NJ (2000)
2,000 sq.ft. Batten-Tite .050" Aluminum

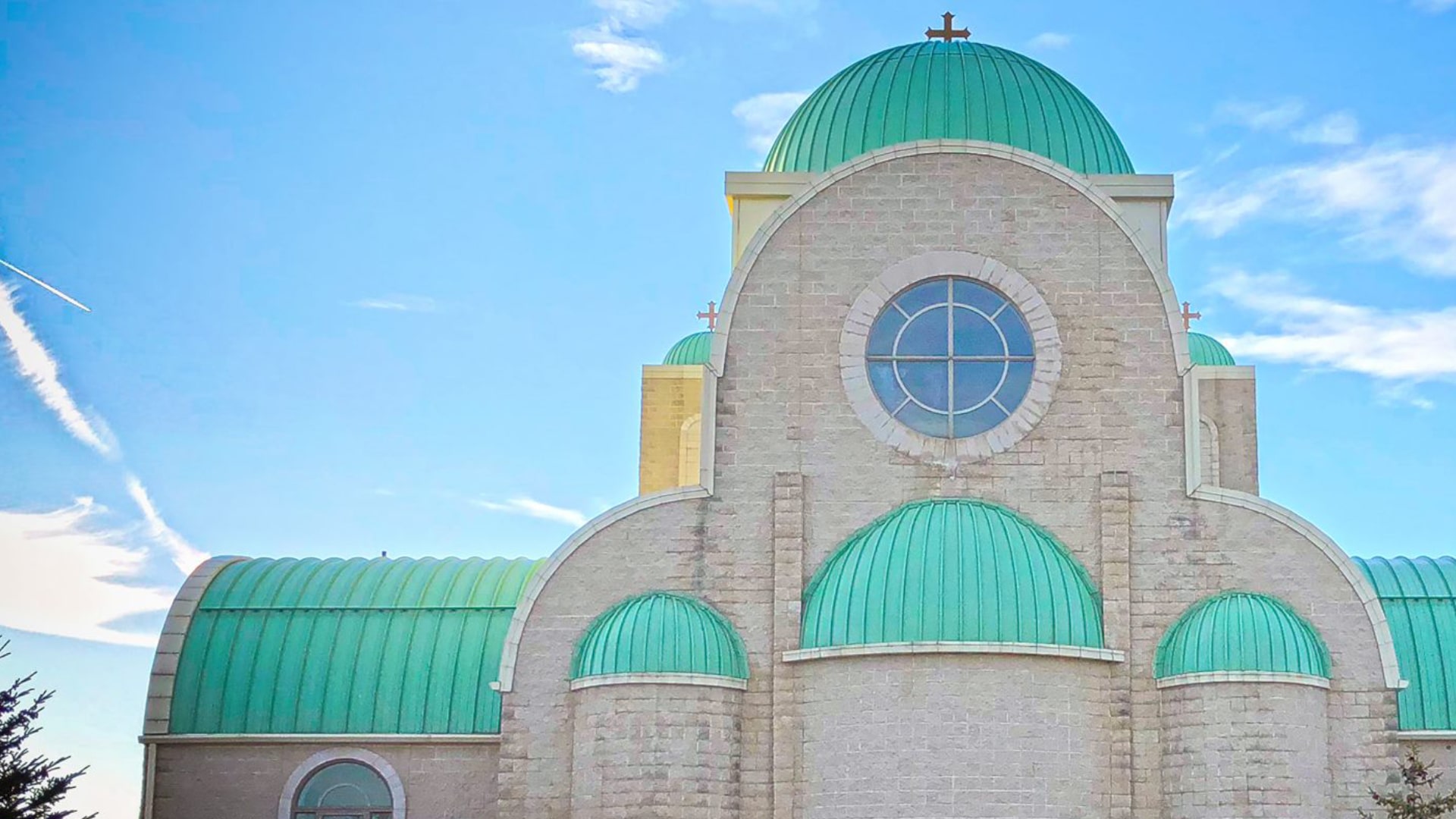

st. mary & st. antonios church Oak Creek, WI (2006)
Batten-Tite .050" Aluminum (domes)

The Batten-Tite™ architectural metal roof panel system is designed for roofing on slopes 3” per foot or greater, as well as vertical wall applications. Its batten style ribs are 1-7/8” high and panels are available in custom widths up to 44-1/2” (nominal coverage). Specialty manufacturing options such as conical tapers, convex and concave curves, domes and continuous lengths up to 45 feet are available. Batten-Tite can be applied over plywood or gyp board and rigid insulation over decking, and requires 30# felt underlayment and rosin slip sheet.

A. Formed Panel

B. Formed Batten

C. Batten Clip

D. Internal Gutter

E. Base Channel

Product Documents

Design Characteristics

  • Architectural pan & batten metal roofing system
  • Standard Panel Depth: 1-7/8”
  • Available Panel Widths: custom up to 44-1/2”

Available Materials

  • Aluminum: .032”, .040”, .050”
  • Galvanized: 24, 22, 20 gauge
  • Stainless Steel: 22 & 24 gauge
  • Copper: 16oz & 20oz
  • Zinc: .7mm, .8mm, 1.0mm
  • Mill Finish or with Flouropolymer (Kynar) coating
  • Smooth or Stucco Embossed Surface
    *Other materials, gauges & custom coatings available

Product Testing

  • Underwriters Laboratories Tested
  • ASTM E330
  • ASTM E331
  • F.B.C. Approved

Warranties

  • 20-year finish warranty for Kynar® coating
  • Weathertight warranty on qualifying applications
