From Retrofit to New Build—Support That Performs.
IntelliFrame™ by IMETCO is a comprehensive line of structural framing systems engineered for both roof and wall applications. Whether you’re retrofitting an existing roof with IntelliFrame RF or enhancing rainscreen performance with our vented hat and zee channels, IntelliFrame provides the strength, precision, and adaptability to meet today’s complex building envelope demands. Designed for long-term performance, sustainability, and ease of installation, IntelliFrame also boosts the structural capacity of aging or underbuilt systems—extending their lifespan and reducing the need for full demolition, material waste, and costly rebuilds.
IntellIFrame for Rainscreen
The design principles of rainscreens require that ventilation be provided behind the exterior cladding of the system. The IntelliFrame™ Vented Hat Channel was specifically engineered to provide secure attachment of cladding systems while maintaining the critical ventilation and drainage cavity behind the wall assembly. Fabricated from 18-gauge steel, this framing component delivers strong structural support with minimal thermal bridging—especially when installed over continuous insulation.

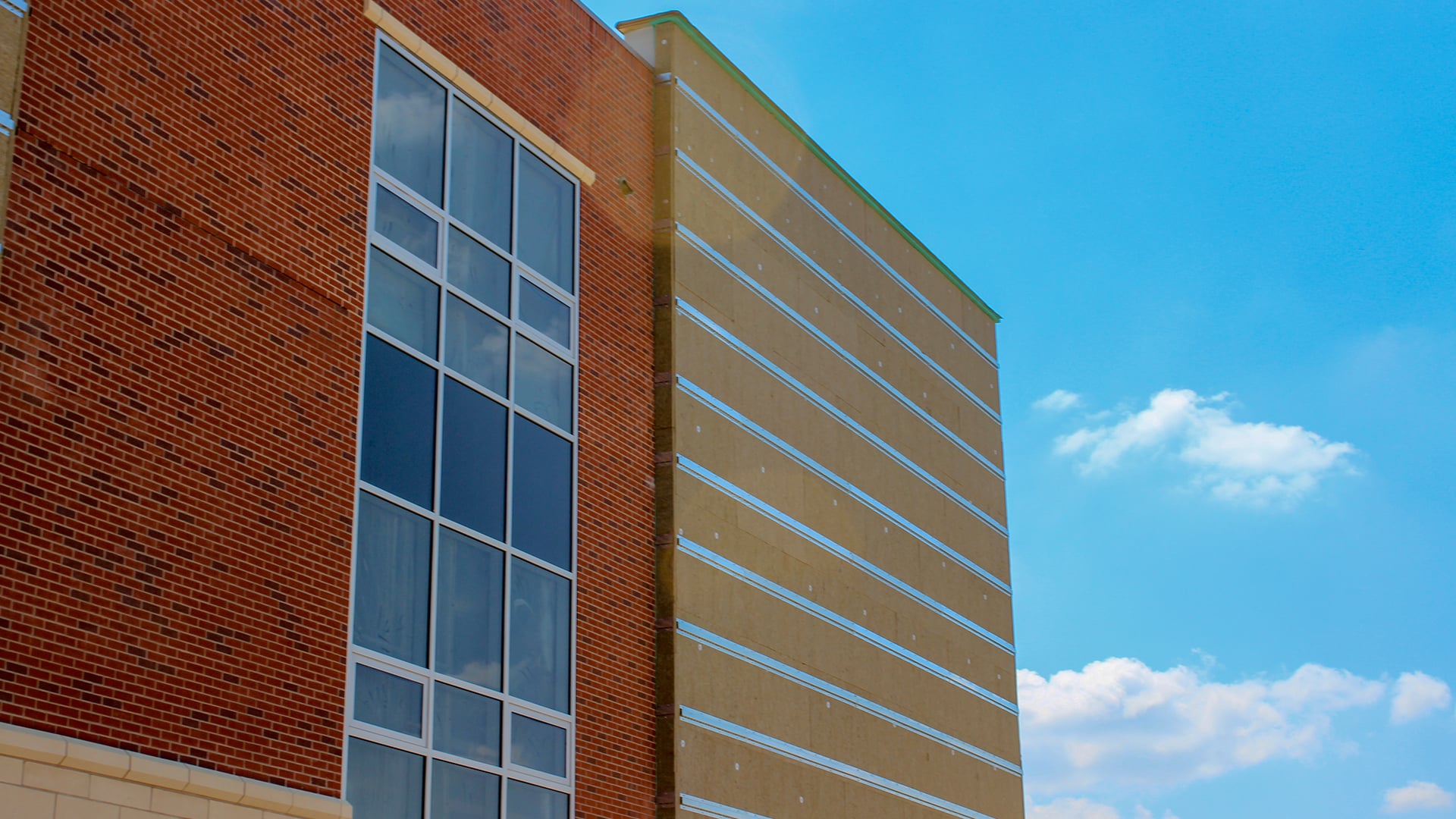

To complement the Vented Hat Channel, IntelliFrame Zee Channels are available in a range of depths, offering additional framing options for various wall designs. These components are ideal for both new construction and retrofit wall applications, where they create the space needed to add continuous insulation and improve overall thermal performance.
The IntelliFrame framing layout is determined by the cladding type and project-specific demands. Both Vented Hat and Zee Channels can be installed horizontally or vertically, depending on design and load requirements. Fastening requirements must be engineered for each application. For spacing and fastening guidance, please contact your local IMETCO representative.
IntelliFrame™ is a critical component of our IntelliScreen® complete rainscreen systems. For more information on how IMETCO delivers single-source, sustainable building envelope solutions, use the button below to explore IntelliScreen in more detail.
IntelliFrame RF for Retrofit Roofing
Smart Retrofits, Stronger Roofs.
IntelliFrame® RF is a high-performance retrofit framing system designed for trapezoidal and standing seam roofing. This solution preserves the structural integrity of existing roofs while reducing labor, waste, and installation time. With precision-punched notches and pilot holes, IntelliFrame RF ensures fast, easy fastening, and its unique nesting capability provides seamless integration with existing roof profiles for a stable, low-profile connection.
Designed for durability and long-term performance, IntelliFrame RF also plays a significant role in sustainability. By enabling energy-efficient retrofits and reducing the need for full roof replacements, IntelliFrame RF minimizes material waste and lowers carbon footprints. This framing system supports sustainable building practices and helps increase thermal efficiency, enhancing overall roof performance. IntelliFrame RF is the ideal choice for projects looking to combine high-performance structural integrity with environmental responsibility.
Typical IntelliFrame® RF over Trapezoidal Metal Roof
Shown here, the IntelliFrame® RF retrofit framing system is installed over a trapezoidal metal roof, with optional Rockwool insulation for improved thermal performance. Paired with a new ZIP-RIB metal roof, this system allows for seamless integration with a variety of insulation types and metal roofing options, offering flexibility and efficiency tailored to your project needs.
Typical IntelliFrame® RF over Trapezoidal Metal Roof - Corner/Perimeter
In this configuration, IntelliFrame® RF is enhanced with additional cross-framing members to significantly increase structural capacity. Ideal for corner and perimeter details, or projects in high-wind zones with stringent building codes, this added cross-framing ensures the strength and stability needed for demanding conditions, providing superior support for your building envelope.
