The dynamic nature of a metal roof is embraced and facilitated by the Series 300™ system. The unique one-piece concealed clip, made of heavy 16-gauge galvanized or stainless steel, is designed to provide maximum structural integrity while allowing unlimited thermal movement. The clip also elevates the panel 3/8-inch off the substrate to allow for air movement.

The one-piece clip, isolated seam sealant, custom trim, flashing, and system details all work together to accommodate the natural expansion and contraction of metal that occurs when it is exposed to varying temperatures. Each Series 300 roof is engineered for unlimited thermal movement to maintain the roof’s structural integrity and provide a lifetime of watertight protection.

Product Documents

Design Characteristics

  • Long-term weather-tight performance
  • Custom trim and flashing details available
  • One-piece clip allows unlimited thermal movement
  • Rigorously tested against leaks and hurricane-force winds
  • Ideal for structural and/or architectural applications
    • Can be installed over open purlins or solid decks
    • Suitable for slopes as moderate as ¼:12 or on steeper slopes
    • Available vertically as a wall panel

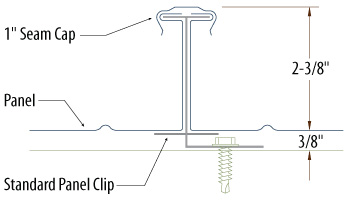

  • 2-3/8″ symmetrical seam with a separate, easy-to-install seam cap

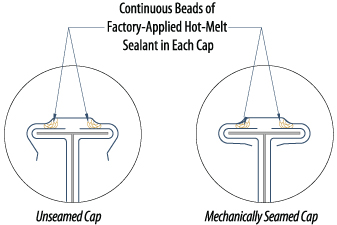

  • Factory-applied hot-melt sealant that remains isolated from the clip
  • 3/8″ clearance between panel and substrate promotes ventilation
  • 12-inch, 16-inch, and 18-inch panel widths
  • Wide variety of materials and colors

Product Testing

  • AAMA 501.1 wind driven rain
  • ASTM E-1592 wind uplift (structural performance, tests to failure)
  • ASTM E-1646 water penetration
  • ASTM E-1680 air infiltration
  • ASTM E-2140 water penetration & vertical load (submerged)
  • FM 4471 vertical load, wind, fire and impact (tests to failure)
  • TAS 100-95 wind driven rain resistance
  • TAS 114 water penetration & vertical load (submerged)
  • TAS 125 extreme wind uplift (tests to failure)
  • TAS 201 dynamic load and impact
  • TAS 203 dynamic load wind cycling
  • UL 263 fire resistance
  • UL 580 wind uplift using dynamic loading
  • FEMA 361 extreme wind uplift & impact

Available Materials

  • Steel: 24, 22, 20-gauge
  • Aluminum: .032″, .040″, .050″, .063″
  • Zinc: 0.8mm and 1.0mm
  • Copper: 16, 20, 24-ounce
  • Stainless Steel: 24, 22, 20-gauge

Warranties

  • 20-year finish warranty for Kynar 500® fluorocarbon coatings
  • Materials and workmanship warranty
  • Watertight warranty for qualified applications

Specialty Manufacturing

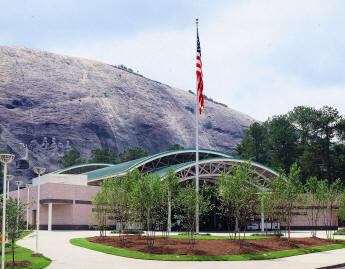

  • Curving (convex, concave and “S” curves)
  • Tapering (to more than 80-feet in length)
  • Long panel factory manufacturing (up to 85 feet)
  • On-site fabrication of factory-quality straight or curved panels is available
