Watch Video: Field Curved Metal Roof
Series 300 Metal Roof panels, some as long as 115-feet, are curved in the field with a compound "S" curve, then lifted via engineered spreader bar to the roof deck.
Field Forming and Curving
IMETCO's field forming and field curving capabilities far exceed that of other manufacturers.
From our factory-quality forming equipment to our onsite fabrication experts, IMETCO's field formed panels offer the same warranted, proven performance as those manufactured in our plant.

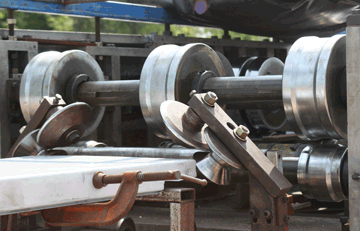

IMETCO's field roll equipment is full-service factory-quality featuring 16 roll stations and tension leveling - it is not a scaled-down secondary or "portable" model. It is shipped with a de-coiler to your job site on a 45-foot trailer, then set up and operated on-site by the same talented metal craftsmen who manufacture IMETCO's high-performance metal systems in our factory.
Engineered Spreader Bar
For each field forming project, IMETCO supplies the roll forming machine, decoiler and generator, and an operator. IMETCO's one-of-a-kind Engineered Spreader Bar , which can accommodate up to 250-foot lengths, is also available for rental.
Contractors are responsible for equipment freight (both ways), coils, seam caps, accessories and the on-site manpower needed to maneuver the panels (one man per 15' panel length). A flat manufacturing area equivalent to the panel length plus 60 feet is needed, as well as a 10,000-lb lift to handle coil and maneuver forming equipment.
