Formed Metal Fascia and Coping Line

IMETCO's EZ EdgeTM line combines quality with economy. These products offer proven reliability and pleasing aesthetics at a lower cost than performance-inspired edge systems. For use with built-up, single-ply and modified roofing systems, all of the EZ Edge products are available with a 20-year KynarŪ finish warranty. EZ-Edge fascia and coping is available with a weather-tight warranty up to 10 years.

EZ Edge Fascia and Coping Features and Benefits:

  • Factory fabricated and field proven
  • Standard & project-specific profiles & sizes
  • Simple, strong design
  • 10-foot standard lengths (other lengths available)
  • Concealed 6-inch splice plates
  • Factory-fabricated corners, end caps, etc.
  • Mitered and fully welded corners, end caps, transitions, etc. available
  • Fully welded radius coping, fascia & gutter

Warranties
  • 10-Year Blow-Off/Leak-Tight Warranty available
  • 20-Year Finish Warranty available

Materials and Coatings

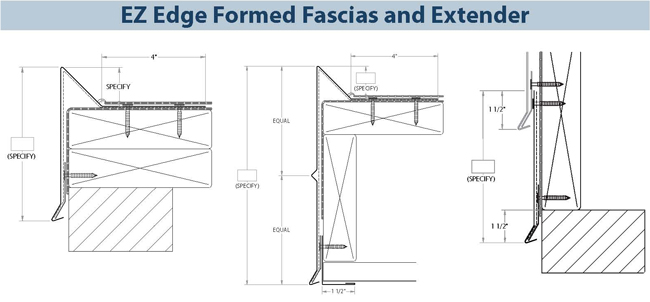

EZ Edge Fascia

  • Aluminum: .040, .050, .063, .080 and .125
  • Galvanized Steel: 24 and 22 gauge
  • Stainless Steel: 24 gauge
  • United Zinc : 0.7, 0.8 mm and 1.0 mm
  • Pre-finished KynarŪ coated aluminum and steel standard
  • Post-coated KynarŪ custom colors available

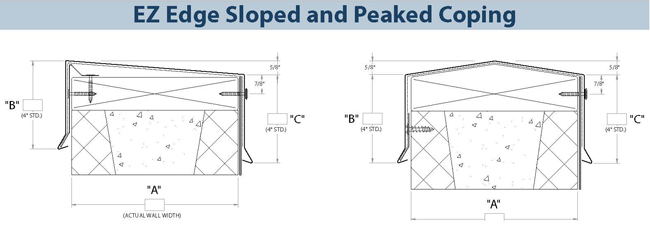

EZ Edge Coping

  • Aluminum: .040, .050, .063, .080 and .125
  • Galvanized Steel: 24 and 22 gauge
  • Stainless Steel: 24 gauge
  • United Zinc : 0.8 mm, 1.0 mm, 1.2 mm and 1.5 mm
  • Pre-finished KynarŪ coated aluminum and steel standard
  • Post-coated KynarŪ custom colors available



United_Zinc_logo copy.jpg


Select EZ Edge Products
Available in United Zinc
